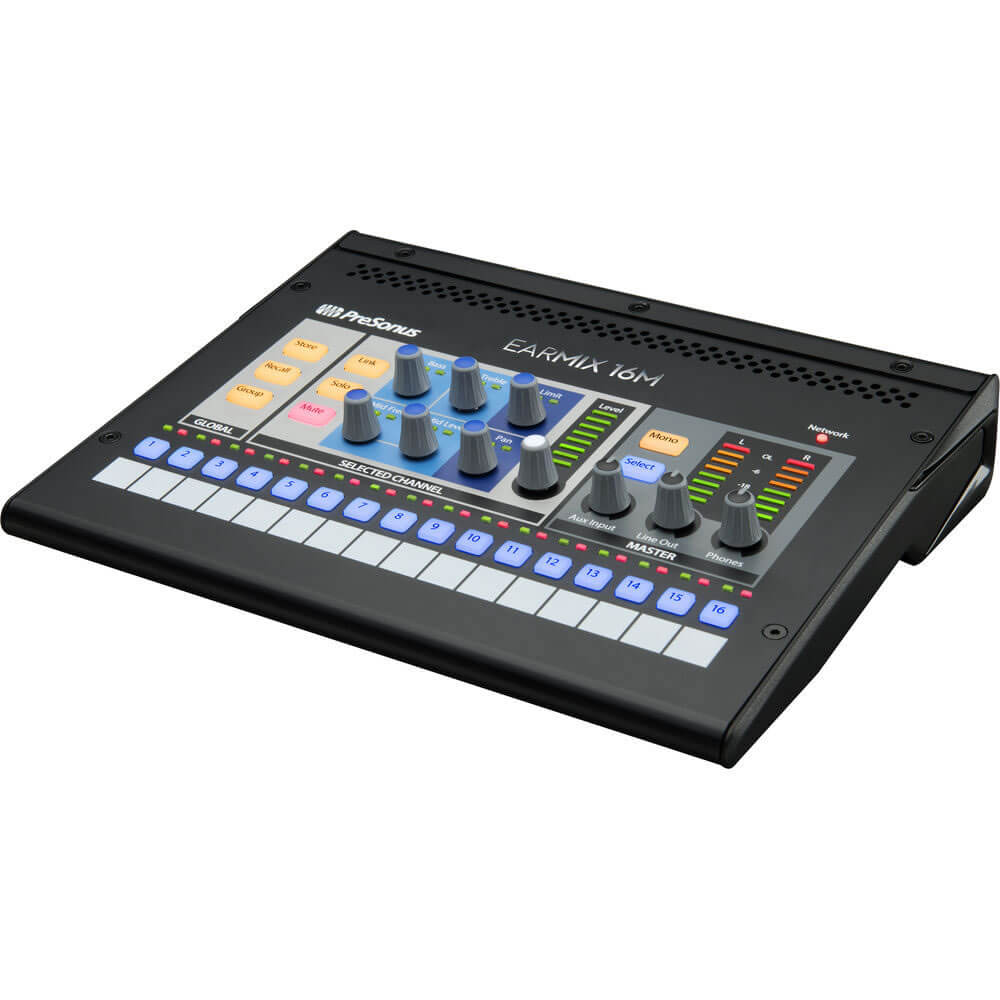

Presonus Earmix 16M 16x2 AVB-Networked Personal Monitor Mixer

The Presonus Earmix 16M 16x2 AVB-Networked Personal Monitor Mixer is a 16-channel personal monitor mixer that is compatible with all StudioLive Series III mixers, as well as with other AVB-enabled systems. The EarMix 16M mixes 16 mono channels via AVB networking and provides stereo channel linking and channel grouping along with three-band EQ and limiting for each channel as well as the main mix. For outputs, the unit offers a pair of balanced 1/4" TRS connectors as well as a 1/4" headphone output with a loud, clear headphone amplifier capable of driving low impedance devices such as high-quality in-ear monitors. The two AVB jacks enable daisy-chaining up to 24 EarMix units with a StudioLive Series III mixer. The EarMix 16M can be powered by the included external power supply or over Ethernet (PoE) from a compatible switch.

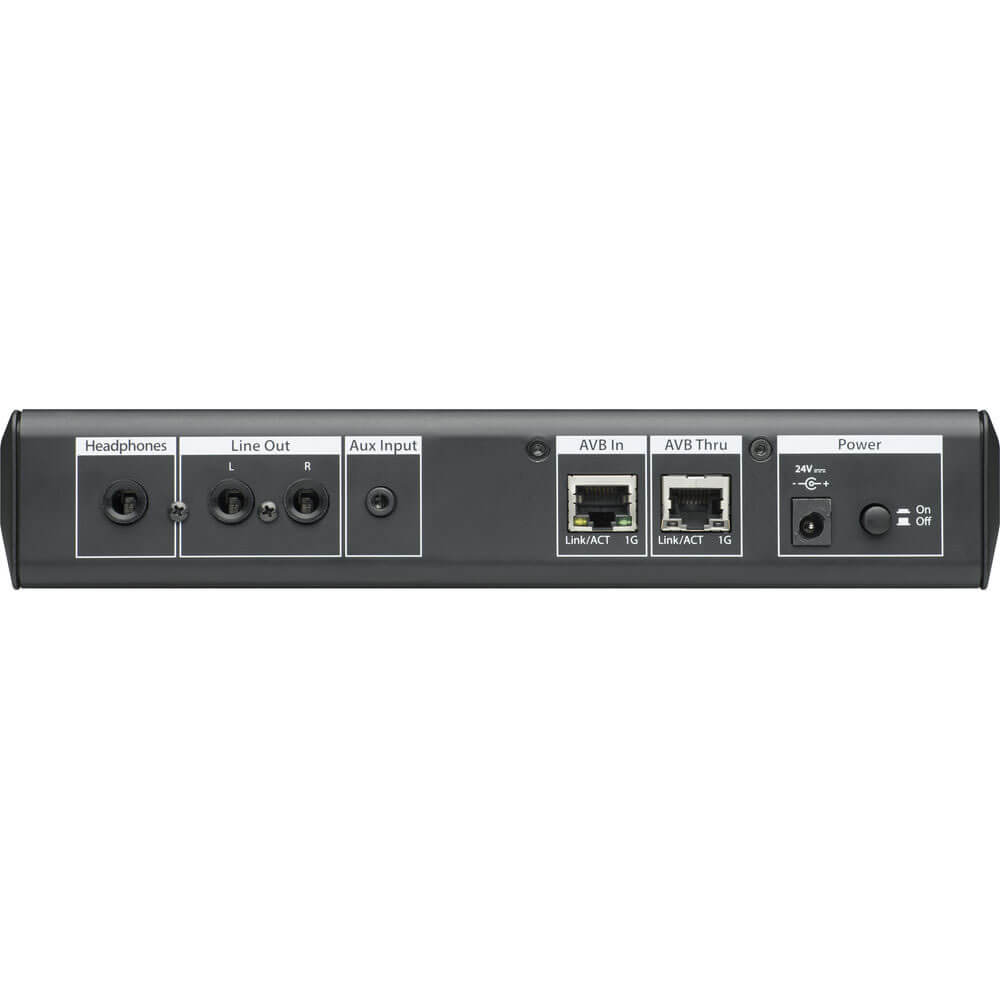

Analog Input/Output

• 1/8" stereo aux input
• 2 x balanced 1/4" TRS line outputs
• 1/4" TRS stereo headphone output with loud, clear headphone amp that can drive low-impedance in-ear monitors

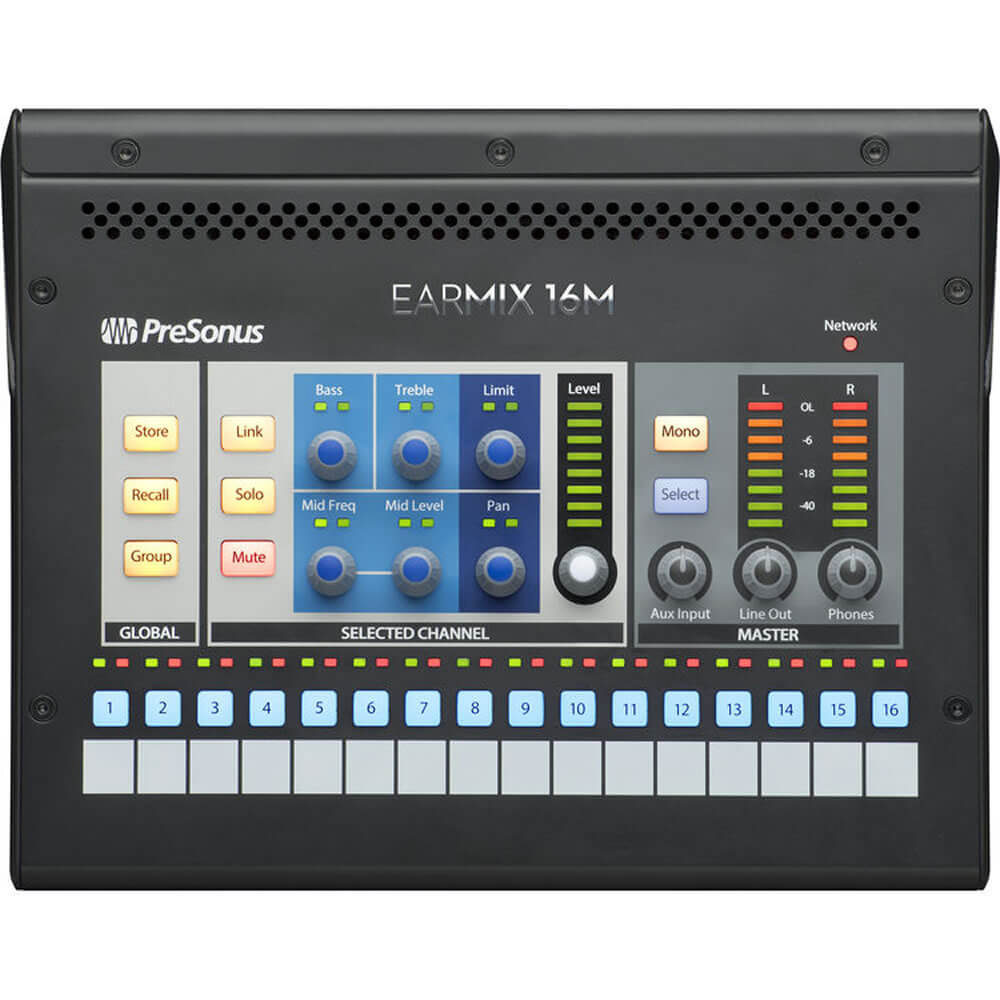

Meters, Controls, and Processing

• 3-band EQ with sweepable mid frequency on all channels and main mix
• Limiter on all channels and main mix
• Stereo channel linking
• Channel grouping
• Solo and mute
• Mix scene Store and Recall; store up to 16 mix scenes locally
• 16 x signal present and clip LEDs (one for each input)
• 8-segment stereo output meter
• Channel Level rotary control with 8-segment level indicator
• Aux input level control
• Independent monitor (line out) and phones level controls
• Routing setup from StudioLive Series III consoles and UC Surface

Digital

• 16 x mono channels of input via AVB networking
• 2 x AVB Ethernet ports
• 24-bit, up to 48 kHz operation

Power

• External 24 VDC power supply (included)
• Support for PoE power

Physical

• Optional mic stand mount (sold separately)
