Samson Airline AHX Wireless UHF Headset System Band K SWSATXDE10-K

Samson Airline AHX Wireless UHF Headset System Band K SWSATXDE10-K

SKU#: 151206

Sale price $399.99 Regular price
Regular price $399.99
Sale Sold out
Shipping calculated at checkout.
Eligible for free shipping
Discounts for students and teachers Learn More
Request a price quote for school and church
Save instantly with our coupons. Sign Up Now!
View full details

The Airline AHX Wireless UHF Headset System from Samson features a CR99 UHF receiver, an ATX transmitter, and a DE10 miniature condenser, dual-ear headset microphone. The frequency-agile UHF system can be used to capture audio in various environments and offers up to 300' of reliable performance for singers and other active performer applications.

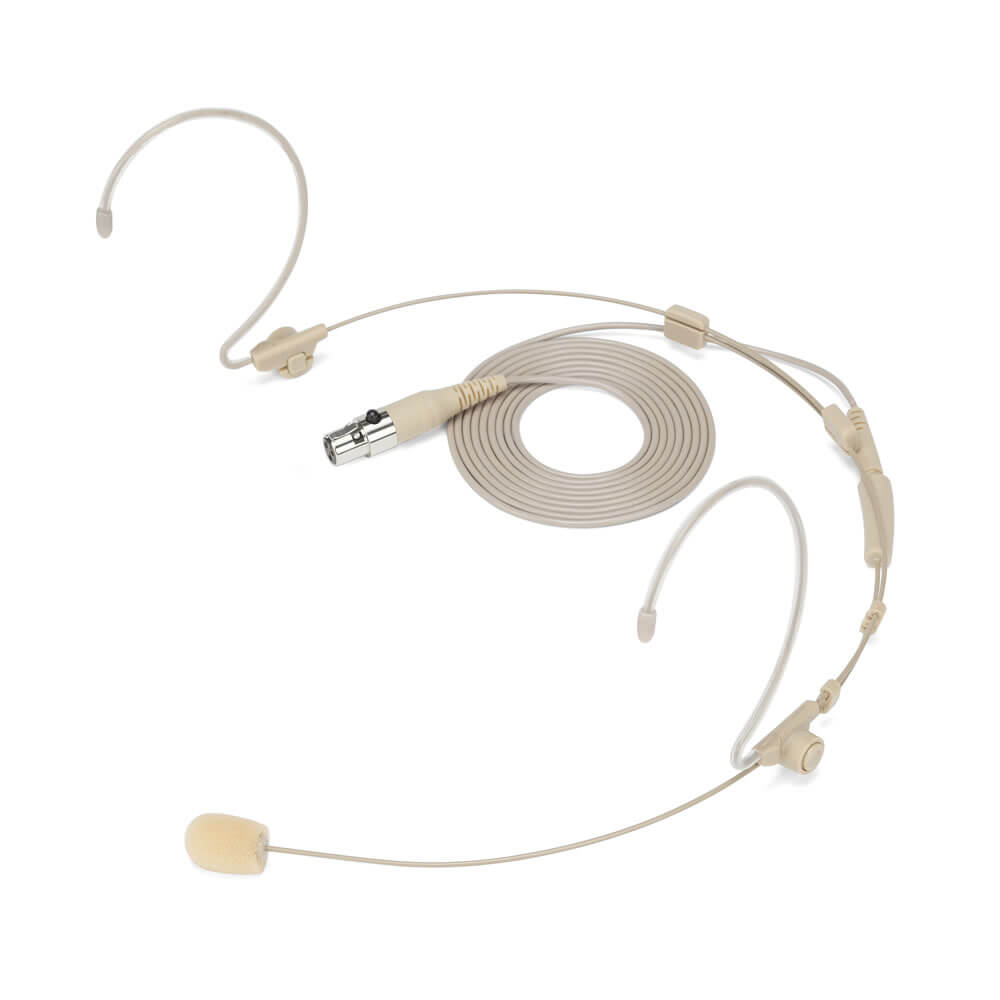

The transmitter is small enough to fit in the palm of your hand and is built with a rechargeable battery. It clips to your belt or shirt pocket and connects via a P3 mini-XLR connector to the low-profile DE10 omnidirectional headset microphone, which provides clear reproduction regardless of the position of the capsule relative to the sound source.

The system's rack-mountable CR99 receiver provides 80 selectable channels of performance and is equipped with a true RF diversity design that minimizes dropouts. Built with tone key technology, the receiver prevents unwanted noise when your transmitter is off or out of range.

Tech Specs

Microphone

Element: Back electret condenser

Polar Pattern: Omnidirectional

Frequency Response: 20 Hz to 20 kHz

Sensitivity: -45 ?ñ3 dB 1 V/Pa/at 1 kHz

Output Impedance: 2 kOhms ?ñ 30%

Maximum SPL: 120 dB

Operating Voltage: 1.5 to 12 VDC

Connector: Mini-XLR (P3)

System

Frequency Band: K: 470 to 494 MHz

Working Range: 300' (100 m), line-of-sight

Frequency Response: 50 Hz to 15 kHz

Total Harmonic Distortion (THD): <1% (@AF 1 kHz, RF 46 dBu)

Dynamic Range: >100 dB, A-weighted

Signal to Noise: >95 dB

Operating Temperature: 14 to 140?øF (-10 to 60?øC)

Tone Key: Frequency: 32.768 kHz

Wireless Receiver

Audio Output Level: Balanced: +9 dBu, Unbalanced: +14 dBu

Audio Output Impedance: Balanced: 240 Ohms, Unbalanced: 810 Ohms

Sensitivity: -100 dBm / 30 dB sinad

Image Rejection: >50 dB

Operating Voltage: 15 VDC 200 mA

Dimensions (L x W x H): 7.87 x 5.9 x 1.6" (200 x 150 x 42 mm)

Weight: 2.08 lb (0.95 kg)

Transmitter

Input Connector: Mini-XLR (P3)

Input Impedance: 3 kOhms

Gain Range: Input: 20 dB

RF Power: 10 mW EIRP

Power Requirements: 3.6 V 500 mAh

Battery: Lithium Ion rechargeable battery

Battery Life (approx.): 6 hours

Dimensions (L x W x H): 5.9 x 6.7 x 3.9" (150 x 170 x 100 mm)

Weight: 0.13 lb (60 g)

Includes

  • Samson Airline AHX Wireless UHF Headset System (K: 470 to 494 MHz)
  • CR99 UHF Receiver
  • D10 Headset Microphone
  • ATX UHF Transmitter
  • 4 x Windscreens
  • Rackmount Kit
  • AC Adapter
