Samson Airline ALX Wireless UHF Lavalier System Band K SWSATXLM8-K

Samson Airline ALX Wireless UHF Lavalier System Band K SWSATXLM8-K

SKU#: 151205

Sale price $399.99 Regular price
Regular price $399.99
Sale Sold out
Shipping calculated at checkout.
Eligible for free shipping
Discounts for students and teachers Learn More
Request a price quote for school and church
Save instantly with our coupons. Sign Up Now!
View full details

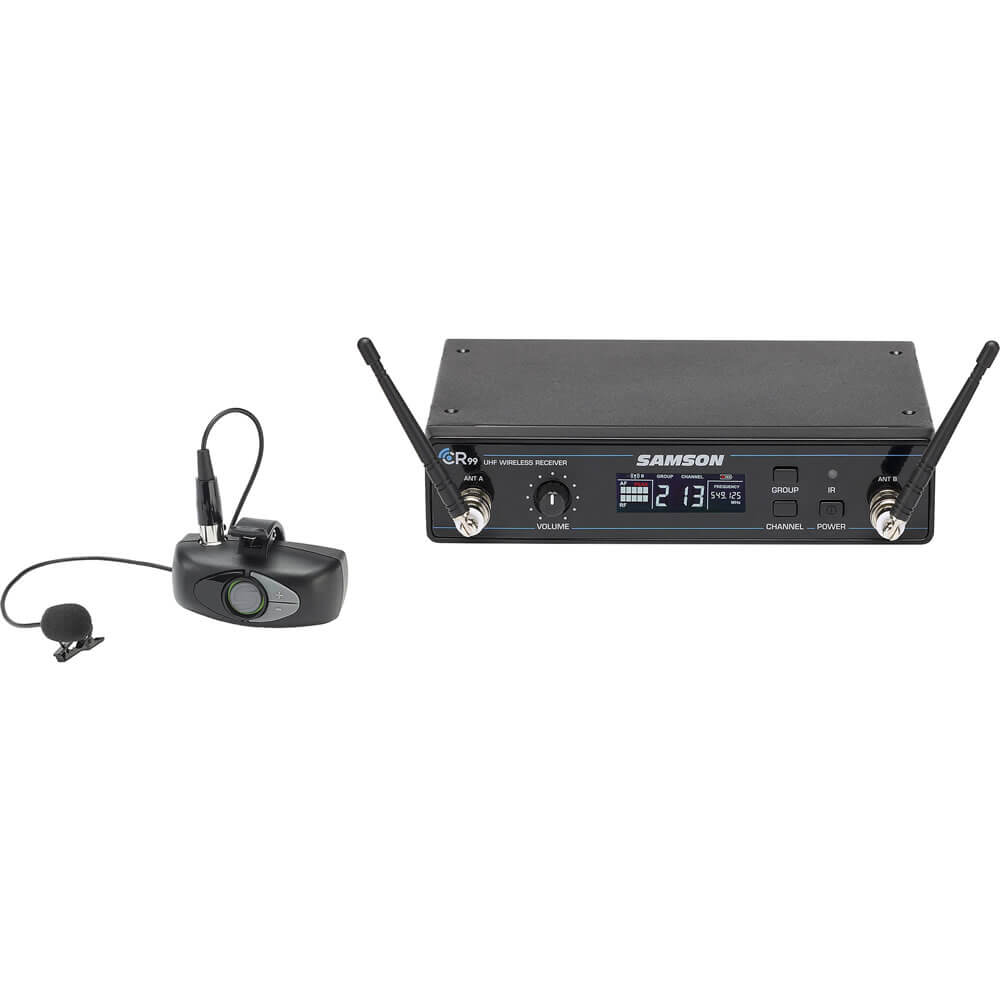

The Airline ALX Wireless UHF Lavalier System from Samson features a CR99 UHF receiver with rackmount kit and AC adapter, an ATX transmitter, and an LM8 lavalier microphone. The frequency-agile UHF system can be used to capture audio in various environments and offers up to 300' of reliable performance for speech and other active presenter applications.

The transmitter is small enough to fit in the palm of your hand and is built with a rechargeable battery. It clips to your belt and connects via a P3 mini-XLR connector to the low-profile LM8 omnidirectional lavalier microphone, which provides clear reproduction regardless of the position of the capsule relative to the sound source.

The system's rack-mountable CR99 receiver provides 80 selectable channels of performance and is equipped with a true RF diversity design that minimizes dropouts. Built with tone key technology, the receiver prevents unwanted noise when your transmitter is off or out of range.

Tech Specs


Model: LM8 lavalier

Polar Pattern: Omnidirectional

Connector: Mini-XLR (P3)


Frequency Band: K: 470 to 494 MHz

Working Range: 300' (100 m), line-of-sight

Frequency Response: 50 Hz to 15 kHz

Total Harmonic Distortion (THD): <1% (@AF 1 kHz, RF 46 dBu)

Dynamic Range: >100 dB, A-weighted

Signal to Noise : >95 dB

Operating Temperature: 14 to 140?øF (-10 to 60?øC)

Tone Key: Frequency: 32.768 kHz

Wireless Receiver

Audio Output Level: Balanced: +9 dBu, Unbalanced: +14 dBu

Audio Output Impedance: Balanced: 240 Ohms, Unbalanced: 810 Ohms

Sensitivity: -100 dBm / 30 dB sinad

Image Rejection: >50 dB

Operating Voltage: 15 VDC 200 mA

Dimensions (L x W x H): 7.87 x 5.9 x 1.6" (200 x 150 x 42 mm)

Weight : 2.08 lb (0.95 kg)


Input Connector: Mini-XLR (P3)

Input Impedance: 3 kOhms

Gain Range: Input: 20 dB

RF Power: 10 mW EIRP

Power Requirements: 3.6 V 500 mAh

Battery : Lithium Ion rechargeable battery

Battery Life (approx.): 6 hours

Dimensions (L x W x H): 5.9 x 6.7 x 3.9" (150 x 170 x 100 mm)

Weight : 0.13 lb (60 g)


  • Samson Airline ALX Wireless UHF Lavalier System (K: 470 to 494 MHz)
  • CR99 UHF Receiver
  • LM8 Lavalier Microphone
  • ATX UHF Transmitter
  • Windscreen
  • Mic Clip
  • Rackmount Kit

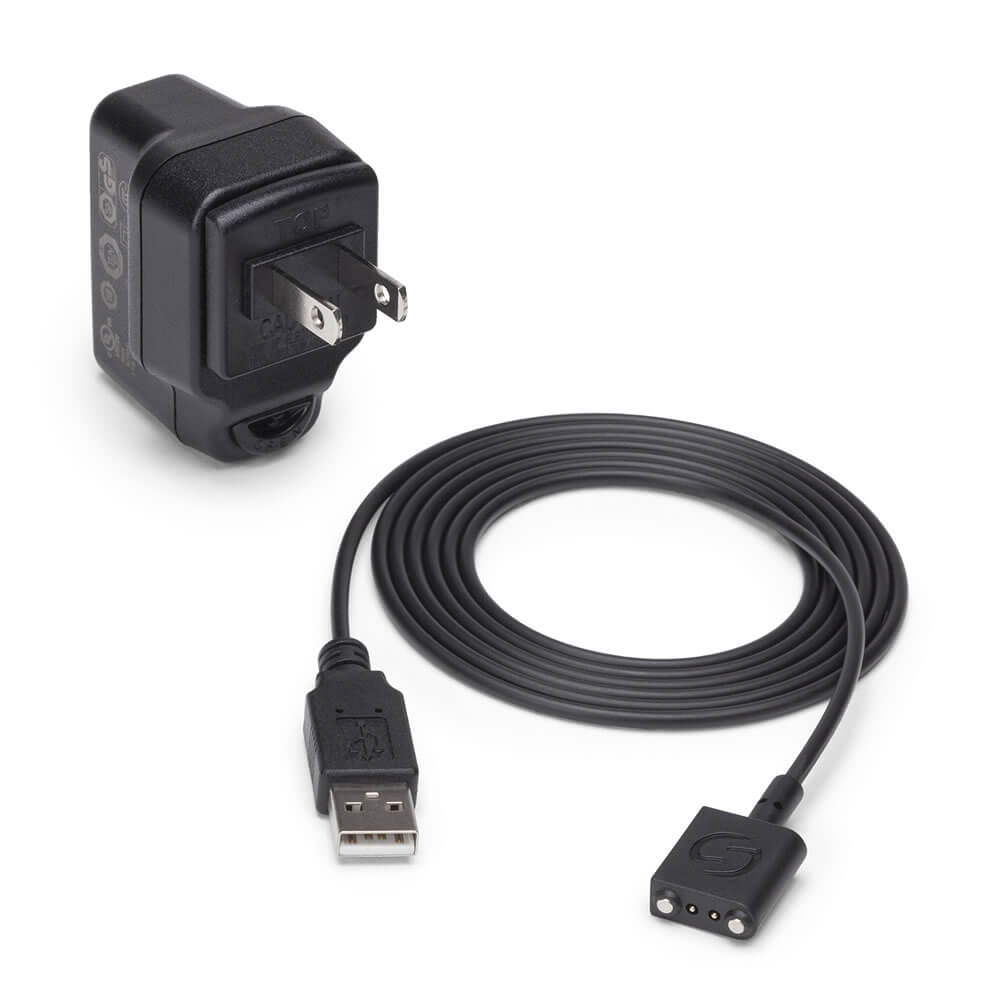

  • AC Adapter
