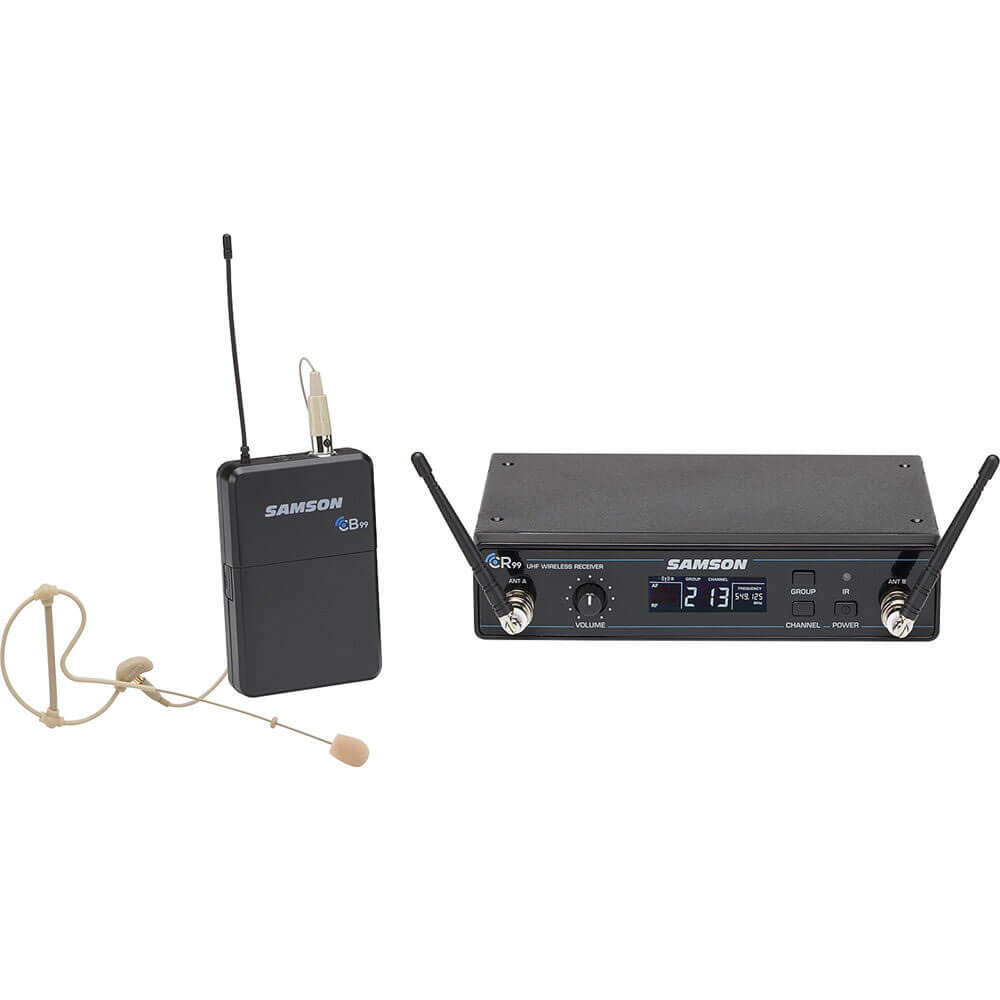

Samson Concert 99 Earset Microphone UHF Wireless System Band D SWC99BSE10-D

The Concert 99 Earset Frequency-Agile UHF Wireless System from Samson is an ideal solution for the active performer who needs a reliable, great-sounding system for wireless applications. It can be used to capture audio for presenters, educators, house of worship speakers, fitness instructors, and others in search of wireless freedom.

Featuring a large backlit LCD display, simple operation with auto-scan channel selection, and infrared set for syncing the transmitter and receiver channel, the Concert 99 is simple-to-use and operate. It delivers clear, interruption-free performance, and utilizes true RF diversity with pilot tone-key and auto-mute functions.

Furthermore, the Concert 99 comes in four configurations. The vocal handheld system includes the CH99 handheld transmitter with Samson's Q8 dynamic microphone capsule. The CB99 belt pack system can be configured with either the SE10 earset microphone, LM10 lavalier microphone, or a 1/4" instrument cable.

In addition, the Concert 99 includes a standard 19" rackmount kit for permanent installations or transporting in a mobile rack.

Wireless to the Nines

Samson's Concert 99 Earset combines 80 channels of high-definition audio and reliability into an all-metal, rack-mountable chassis with a stage-ready backlit display. With simple 1-touch setup, convenient monitoring, a 300' UHF operating range, and impressive transmitter battery life, this frequency-agile system offers unprecedented value to singers, business professionals, educators, and others in search of reliable wireless freedom

Simple Setup

In both single and multi-system arrangements, the CR99 wireless receiver offers 80 total operating channels for selecting the best frequency option in your area. Quick to setup, the CR99's group scan helps avoid conflicting frequencies, while its IR sync function allows users to wirelessly match the transmitter to the receiver's operating frequency

More Monitoring

The CR99 receiver features a bright, backlit LCD for monitoring on dark stages, even at long distances. The LCD also shows the exact battery life of your transmitter, along with the channel number and its corresponding UHF frequency

SE10 Earset Mic

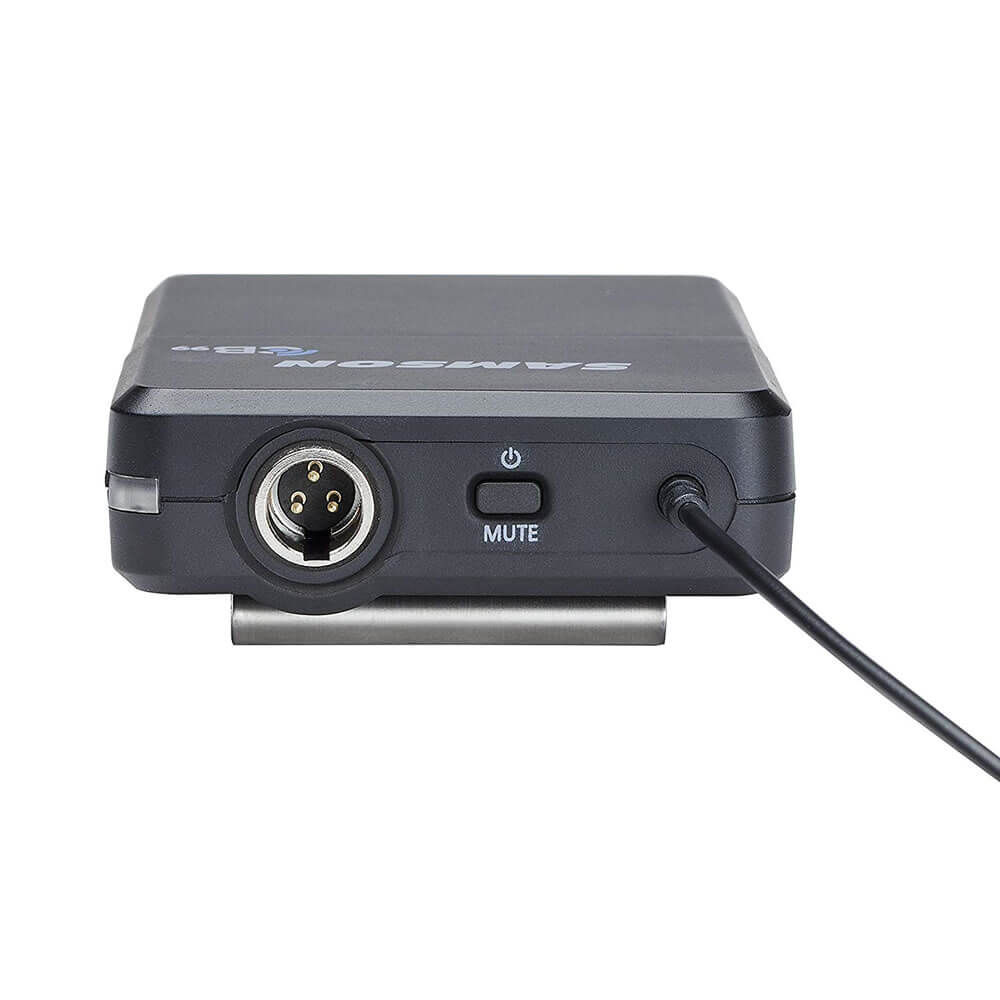

Audio reaches the CR99 wireless receiver via the CB99 beltpack transmitter, which features a Samson's SE10 earset microphone with miniature condenser capsule, moisture-resistant design and locking connector. Offering eight hours of battery life using two AA batteries (not included), the CB99 transmitter features a variable gain control, a popless 1-touch mute button, and a metal belt clip

Tech Specs

System

Working Range: 300' (100 m) line of sight

Audio Frequency Response: 50 Hz to 15 kHz

Total Harmonic Distortion (THD): Less than 1% (@ AF 1 kHz, RF 46 dBu)

Dynamic Range: >103 dB A-weighted

Signal to Noise Ratio: >90 dB

Operating Temperature: 14 to 140?øF (-10 to 60?øC)

Tone Key: Frequency: 35,000 kHz

Receiver

Audio Output Level: Unbalanced: +14 dBu, Balanced: +9 dBu

Audio Output Impedance: Unbalanced: 810 Ohms, Balanced: 240 Ohms

Sensitivity: -100 dBm / 30 dB sinad

Image Rejection: >50 dB

Operating Voltage: 15 VDC 200 mA

Dimensions (L x W x H): 7.87 x 5.9 x 1.6" (200 x 150 x 42 mm)

Weight: 2.08 lb (0.946 kg)

Transmitter

Type: Handheld: CB99

Input Connector: Mini-XLR (P3)

Input Impedance: 1 MOhm

Input Gain Range: 38 dB

RF Power: 10 mW EIRP

Power Requirements: 2 x AA (LR6) alkaline batteries

Battery Life: 8-hours

Dimensions H x L x D: 3.75 x 2.44 x 0.75ƒ?� (96 x 62 x 18.5 mm)

Weight: 0.2 lb (93 g)

Microphone

Capture Device: SE10 Earset

Includes

• Samson Concert 99 Earset Frequency-Agile UHF Wireless System (D: 542-566 MHz)
• CR99 Receiver
• CB99 Beltpack Transmitter
• SE10 Earset
