Samson Stage 200 Dual-Channel Handheld VHF Wireless System Channel A SWS200HH-A

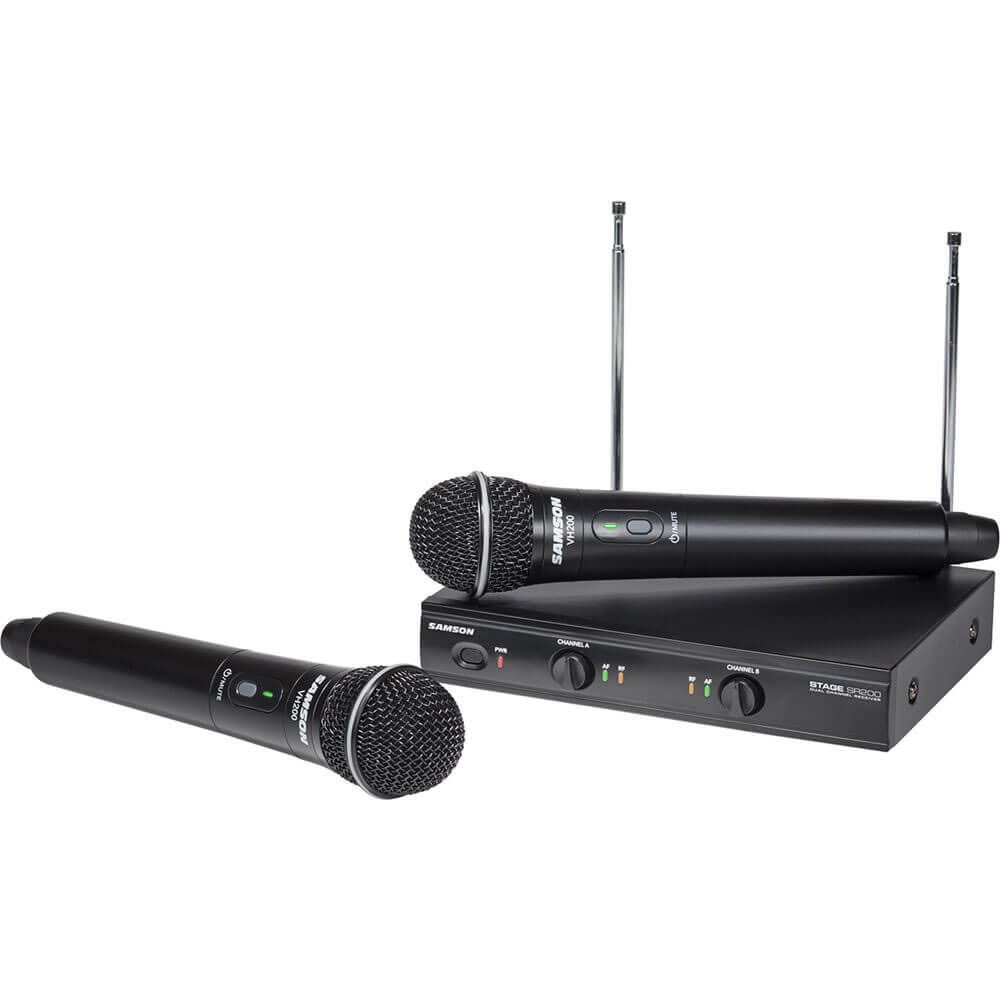

The channel A Stage 200 from Samson is a dual-channel VHS wireless microphone system that provides two handheld dynamic microphones, which transmit to a single rugged metal receiver. The two handheld transmitters feature a Samson Q6 cardioid mic element that provide crisp, clear sound and reliable VHF wireless performance for live presentations, education, karaoke, houses of worship, and other dual-performer applications.

The receiver features two 1/4" outputs on the back panel as well as a balanced XLR mix output. A front-panel volume control for each channel allows you to find the right blend for each performer. The VHF fixed frequency operation provides instant setup. Simply plug in the receiver and turn on the transmitters.

In addition, the VHF operation provides both transmitters with a long battery life of up to 12 hours via two AA batteries (not included), and there is a 200' operating range (line-of-sight) that provides ample freedom for any presenter or performer duo.

VHF Operation

The Stage 200 operates in the reliable VHF frequency spectrum, which has become significantly less crowded with the advancement of digital TV. VHF operation also provides both mic transmitters with an exceptional battery life of up to 12 hours via two AA batteries (not included)

Versatile Performance

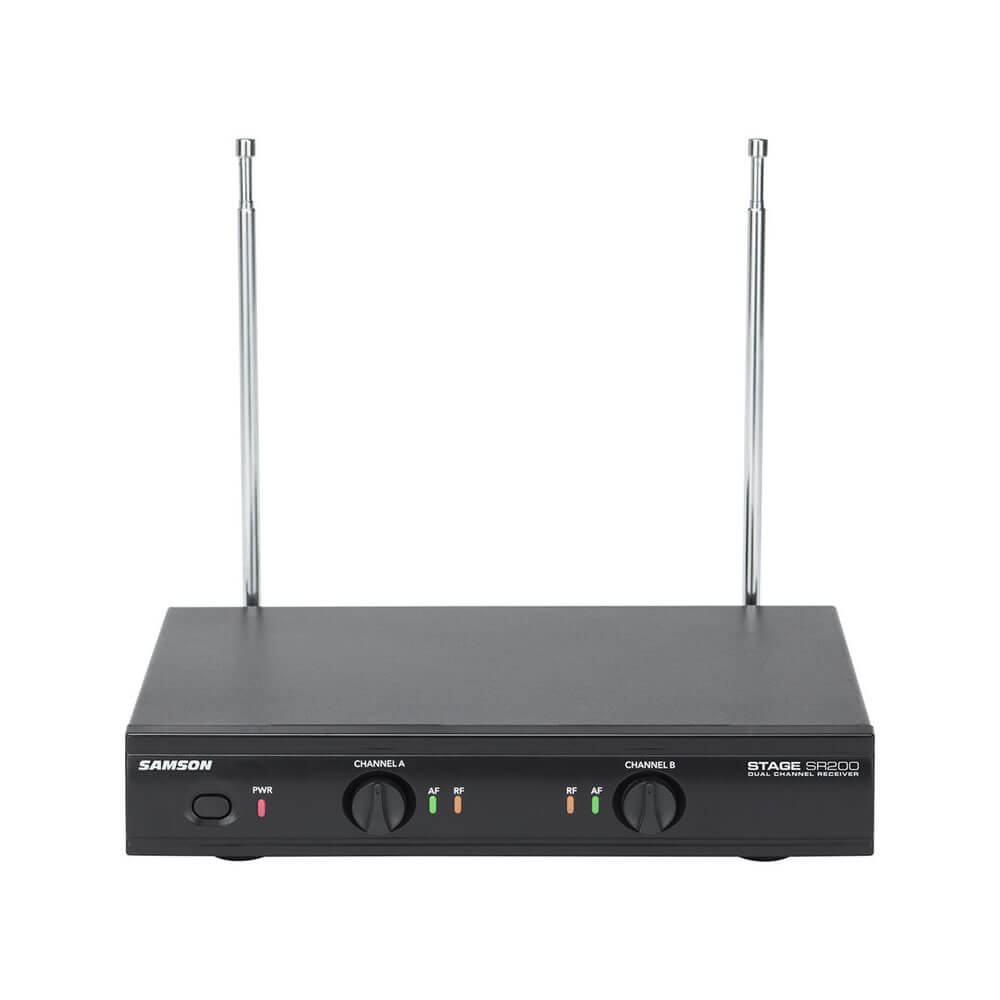

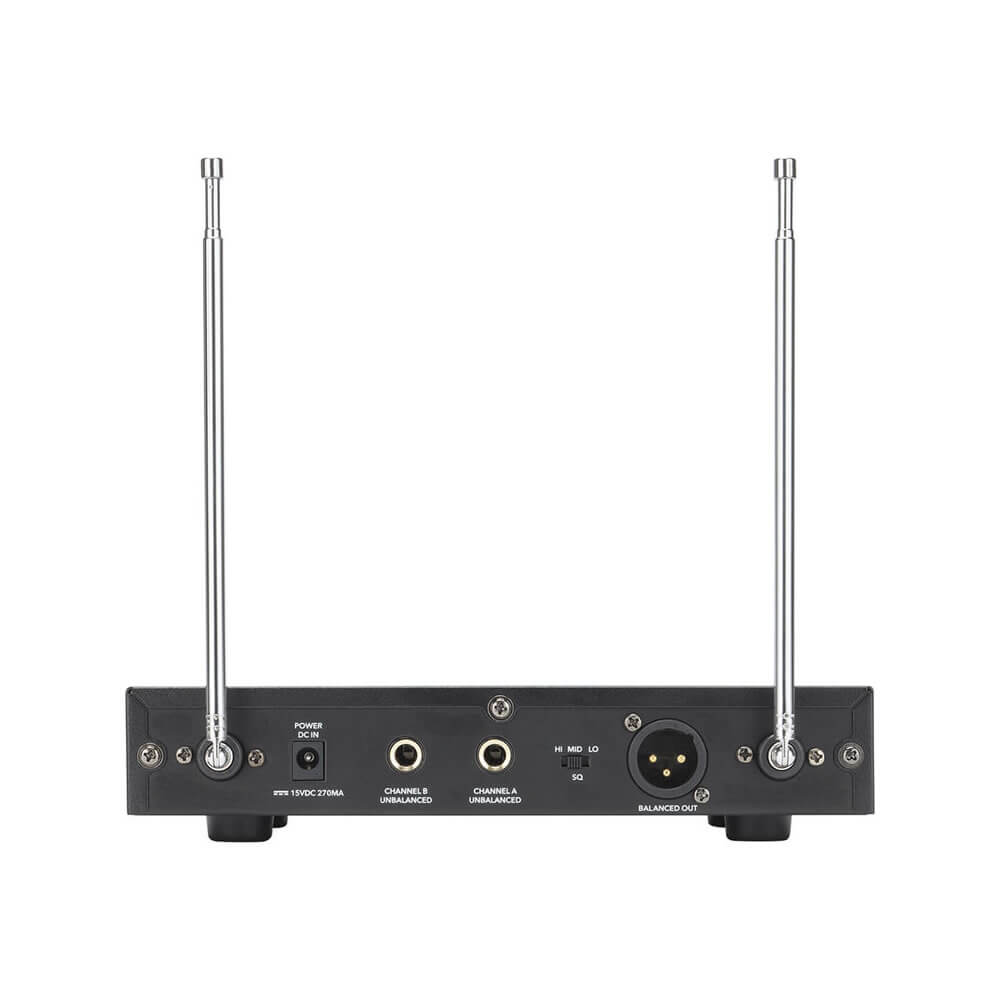

Featuring a rugged metal SR200 receiver, the Stage 200 is designed for maximum durability and versatility. Its back panel provides two 1/4" outputs, as well as a balanced XLR out, to connect to a dedicated mixer or powered PA speaker. The 1/4" outputs send each channel separately, while the XLR sends a mix of both. Front panel volume controls on each channel let you find the perfect blend between two performers

Simple Setup

The Stage 200's fixed frequency operation provides instant setup. Simply plug in the receiver and turn on your transmitters to experience quality wireless performance. A 200' operating range provides ample freedom for any presenter or performer duo

Tech Specs

System

Channel Assignment: A

Working Range: 200' (100 m) line of sight

Dynamic Range: >103 dB A-weighted

Signal to Noise: >90 dB

Receiver

Output Level: Balanced +9 dBu, unbalanced +14 dBu

Audio Output Impedance: Balanced 240 Ohms, unbalanced 810 Ohms

Output Connectors: 2 x 1/4" (6.35 mm) TS mono phone jack, 1 x XLR mix output

Handheld Transmitter

Microphone Element: Samson Q6 dynamic

Pickup Pattern: Cardioid

RF Power: 10 mW EIRP

Battery Life: 12 hours from 2 x AA batteries

Includes

• Samson Stage 200 Dual-Channel Handheld VHF Wireless System (Channel A)
• 2 x VH200 Handheld Transmitters
• SR200 Wireless Receiver
• AC Adapter
