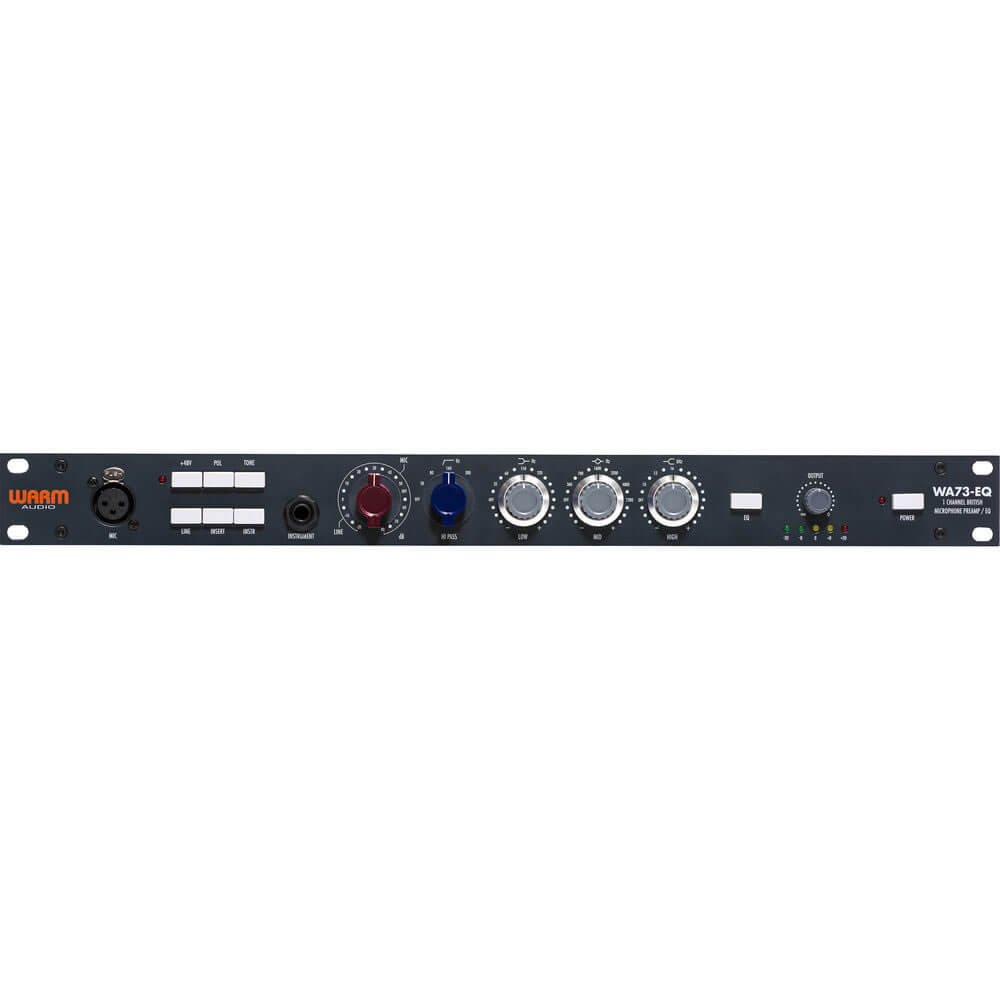

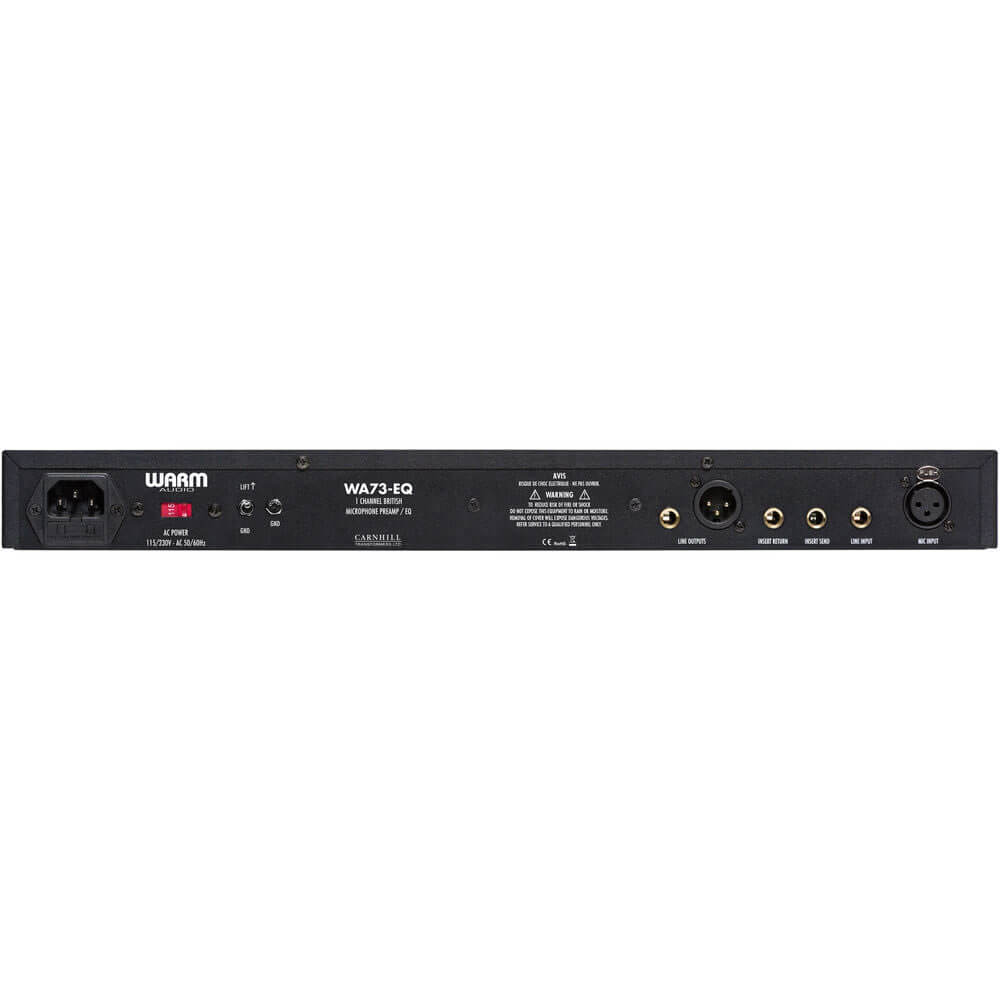

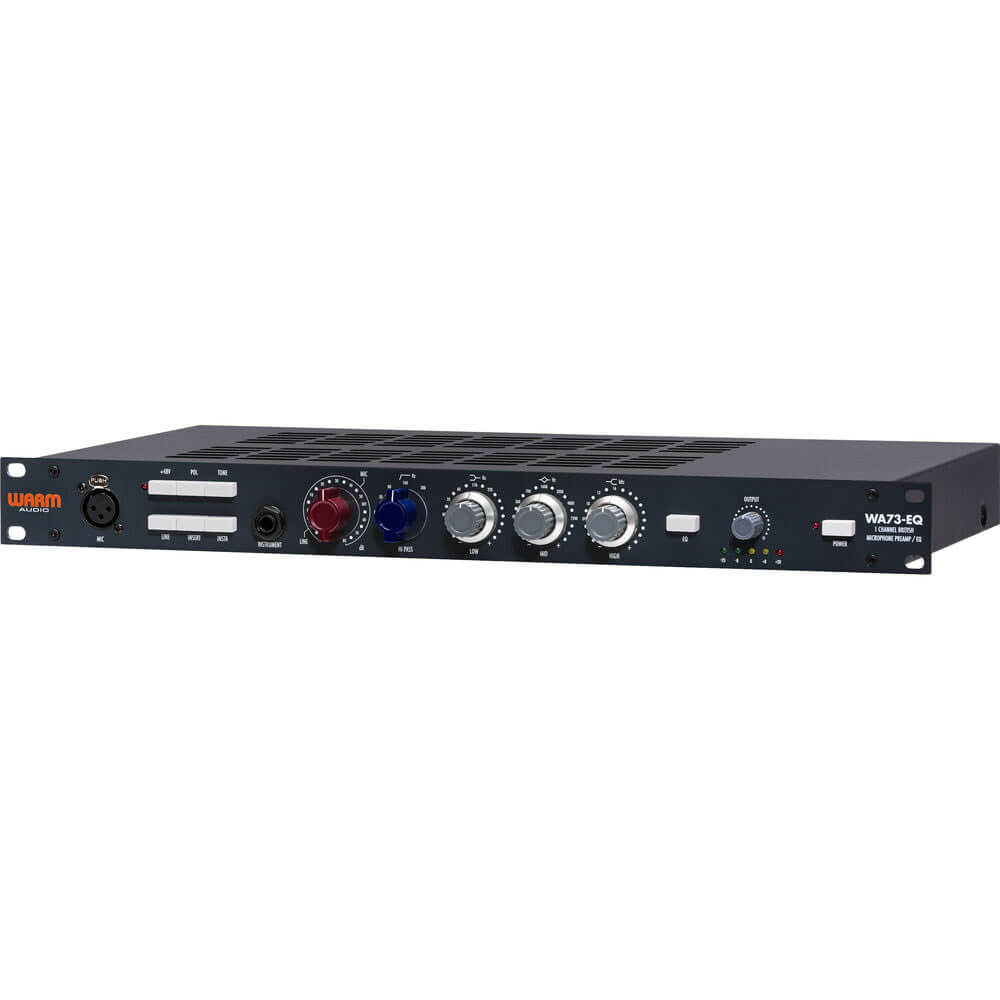

Warm Audio WA-73 Microphone Preamp

Warm Audio WA-73 Microphone Preamp

SKU#: 396267

Sale price $649.00 Regular price
Regular price $649.00
Sale Sold out
Shipping calculated at checkout.
Eligible for free shipping
Discounts for students and teachers Learn More
Request a price quote for school and church
Save instantly with our coupons. Sign Up Now!
View full details

The Warm Audio WA-73 Microphone Preamp is a single-channel, Class-A microphone preamp and equalizer designed to provide up to 80 dB of gain and 3-band EQ for engineers, producers, musicians, and vocalists in mobile-recording rigs and home, project, and commercial studios. It features custom Carnhill transformers and is wired and assembled by hand to deliver the sound and functionality of classic British '73-style preamps.

Its inputs include balanced XLR and 1/4" TRS jacks and one front-panel 1/4" TS instrument input. Input impedance, polarity, ground lift, and phantom power are switchable. Connect an outboard compressor or equalizer via the 1/4" TS insert send and return jacks. Balanced XLR and 1/4" outputs are fed by an output level control and allow compatibility with most audio interfaces and mixing consoles. The selectable high-pass filter can be set to 50 Hz, 80 Hz, 160 Hz, or 300 Hz for management of unruly bass frequencies.

The inductor-based EQ boasts selectable frequencies and Blore Edwards dual-concentric potentiometers. The WA73-EQ is rack-mountable and occupies 1 RU.

Warm Audio WA-73 Microphone Preamp ƒ?? Key Features:

  • Occupies 1 RU
  • Single-channel, Class-A mic preamp and 3-band equalizer wired and assembled by hand
  • Created through years of R&D, careful reverse-engineering, and countless hours of auditioning
  • Designed to function and sound like a classic '73-style preamp
  • Fully discrete, transformer-balanced signal path
  • Custom Carnhill transformers saturate sweetly when pushed
  • Tantalum and polystyrene capacitors in the signal path and an output transistor choice that is smooth in high-gain settings
  • Stepped mic pre gain
  • Selectable low-frequency boost or cut at 35 Hz, 60 Hz, 110 Hz, or 220 Hz
  • Selectable mid-frequency boost or cut at 360 Hz, 700 Hz, 1.6 kHz, 3.2 kHz, 4.8 kHz, or 7.2 kHz
  • Selectable high-frequency boost or cut at 10 kHz, 12 kHz, or 16 kHz
  • Inductor-based EQ and high-pass filter
  • Blore Edwards dual-concentric EQ switching potentiometers
  • Balanced XLR and 1/4" inputs and outputs
  • Front-panel 1/4" TS instrument input
  • 1/4" TS insert send and return
  • Output control with 5-segment LED meter
