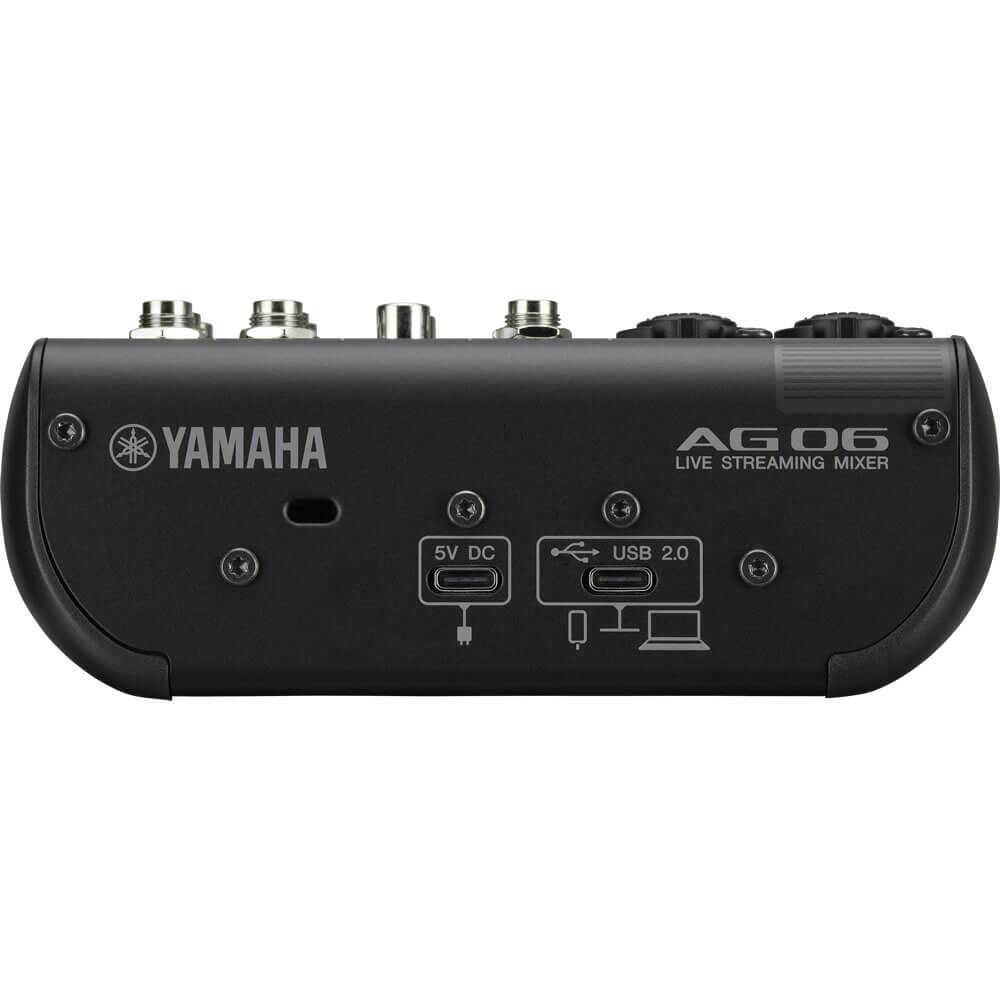

Yamaha AG06MK2 6-Channel Mixer USB Interface for IOS/Mac/PC Black

The Yamaha AG06MK2 is a compact 6-channel mixer and USB interface with built-in DSP for streaming, sound reinforcement, and recording small performances, podcasts, lectures, and similar applications. This updated MK2 version adds a mute button and 3.5mm TRRS input for more flexible live streaming work. It also features an improved build design with updated circuitry for better sound. Capable of recording and playback of high-resolution 24-bit / 192 kHz sound, this mixer features two XLR-1/4" combo mic/line inputs, as well as a stereo 1/4" line input pair, a stereo RCA input pair, and a 3.5mm aux input for portable music players and headsets. The mixer is compatible with Windows/Mac computers as well as iPads and iPhones.

The XLR-1/4" combo mic/line inputs feature switchable 48V phantom power for use with condenser microphones, and input 2 offers a Hi-Z switch for use with electric guitar and bass. The AG06MK2 mixer has stereo 1/4" and stereo RCA outs for connecting to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring.

Fast, Intuitive Sonic Control

With a design similar to a mixing console, the AG06MK2 is equipped with a variety of physical controls that help you shape and manage the audio you stream to your audience. The newly added mute button allows you to cut your mic input at a moment's notice, if the situation demands it, and it can even be controlled using Yamaha's FC5 dedicated footswitch (sold separately), which can also add reverb to your signal while keeping your hands free for other tasks.

Flexible Connectivity and Loopback for Streaming

The AG06MK2 allows you to connect two condenser microphones of your choice, and has two stereo line inputs for instruments, and an upgraded 4-pole mini jack (TRRS) for smartphone input/output capability. Of course, it's also possible to add audio from devices connected via USB in Loopback mode, as with previous AG models. This diverse range of connectivity makes it possible to use high-sensitivity microphones along with each of the audio sources, for a variety of streaming applications such as podcasts with dialog, interviews, vocal performances with an acoustic instrument, or even a live band.

Zero-Latency DSP FX

The AG06MK2 comes equipped with optimized 1-TOUCH COMP/EQ and REVERB controls to dial in the sound that best suits your style. The 1-TOUCH amp simulator to add authenticity and punch to your guitar input All these tools are processed by the internal DSP chip so there's no delay, making it particularly valuable for live streaming when real-time accuracy is crucial. And when you want to capture pure, raw recordings through your preferred microphone and edit them later, you have the option to turn these effects off completely.

Professional-Sounding Audio

As a result of adopting USB-C connectivity and enhanced internal circuitry, the AG06MK2 enjoys a marked improvement in sound quality that will elevate your streaming audio to a more professional level.

AG Controller Software for Precise Control

AG Controller software allows users to easily and precisely check and configure the DSP audio processing inside the AG06MK2. Offering two modes of operation, Simple and Detail, AG Controller gives users of varying music production experience detailed management of their audio from any Windows/Mac or iOS device connected to the AG06MK2 via USB.

Adapt to Your Surroundings

The sleek, slim, and compact body of the AG06MK2 can be placed on virtually any flat surface. By combining it with the optional BMS-10A adapter (available separately), it can be installed on a microphone stand. It can also be connected to a mobile battery (available separately) to configure a mobile streaming station anywhere. For stable operation of the AG06MK2, a power supply of 5VDC, 900mA, or more is required.

Powerful Bundled Software

The AG06MK2 comes bundled with Cubase AI music-production software, as well as WaveLab Cast for audio production and editing. The AG06MK2 is also compatible with Rec'n'Share and Cubasis LE applications for iOS devices, which are available free of charge from Yamaha and Steinberg to support and inspire your audio content creation.
