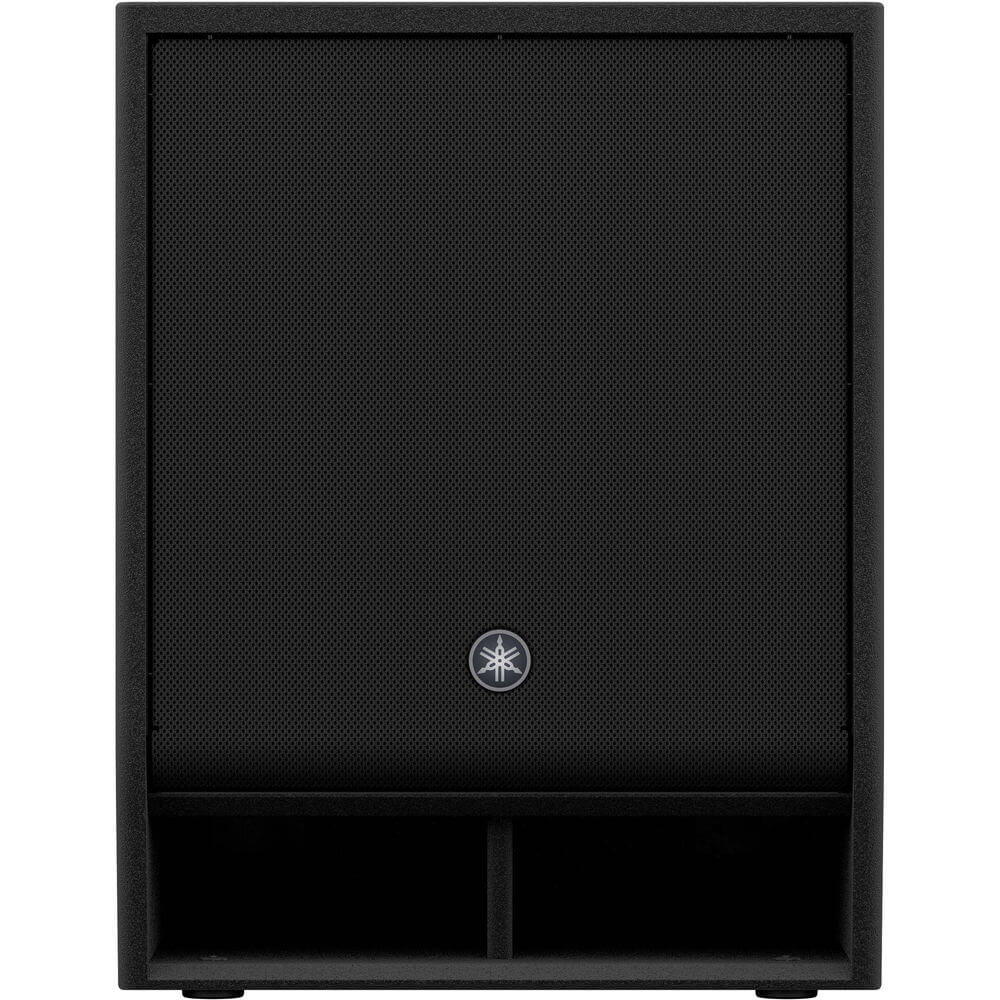

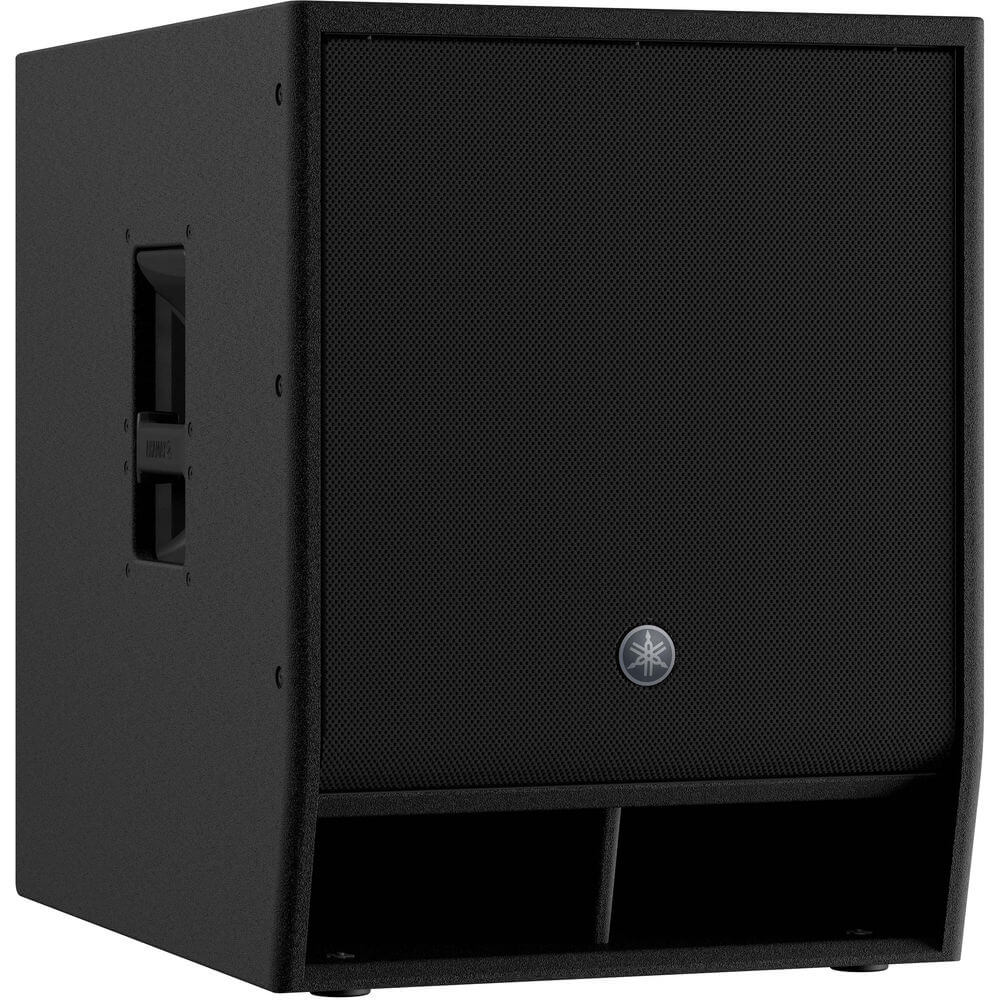

Yamaha CXS15XLF 800W 15-Inch Passive Subwoofer Black

Yamaha CXS15XLF 800W 15-Inch Passive Subwoofer Black

SKU#: 134353

Sale price $899.99 Regular price
Regular price $899.99
Sale Sold out
Shipping calculated at checkout.
Eligible for free shipping
Discounts for students and teachers Learn More
Request a price quote for school and church
Save instantly with our coupons. Sign Up Now!
View full details

The Yamaha CXS15XLF 800W 15-Inch Passive Subwoofer Black is a passive subwoofer designed for extending the low frequency of full-range speakers and is well suited for use with any of the CZR-series passive loudspeakers. The subwoofer requires 800W of power to drive the 15" woofer, providing a frequency range of 33 Hz to 150 Hz (-10 dB) with a maximum SPL of 130 dB.

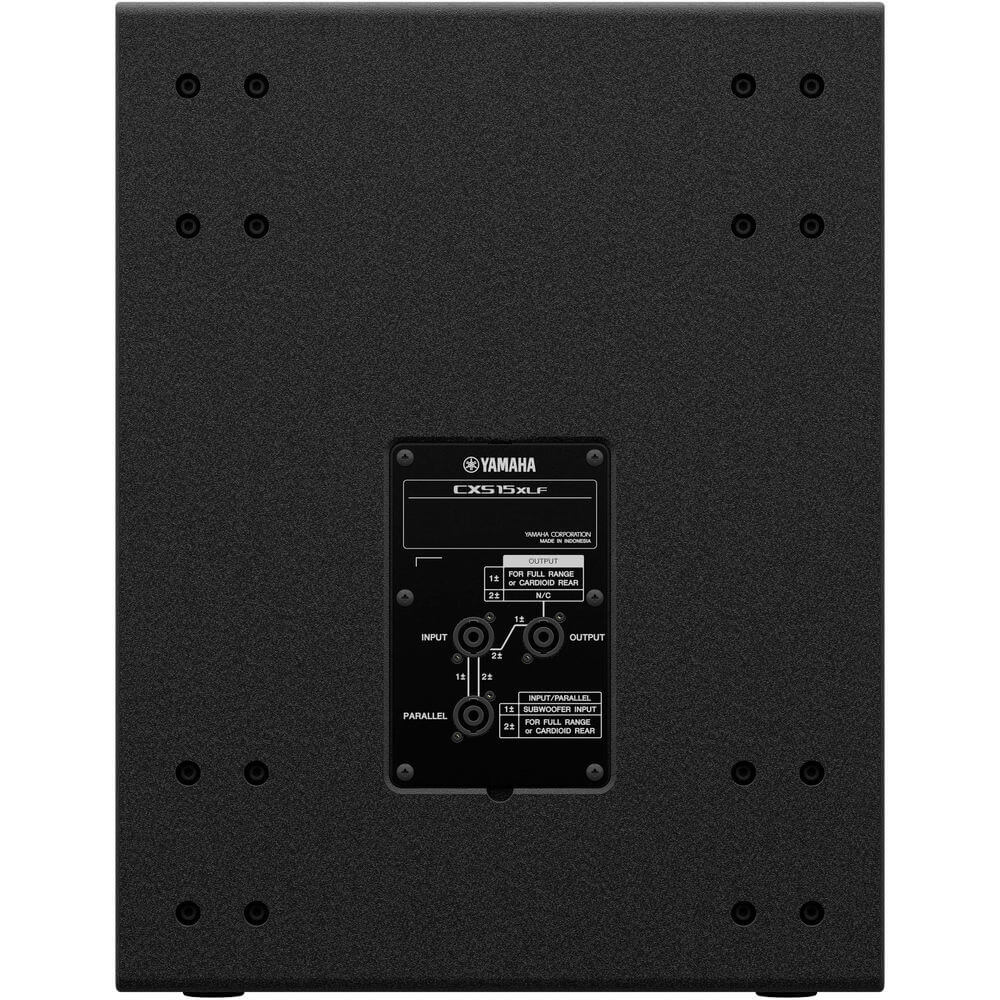

Yamaha recommends the use of a DSP speaker processor or a power amplifier with integrated DSP, such as Yamaha's PX Series amplifiers, in order to set crossovers, limiting, and equalization to ensure the best performance. Additionally, two or more subwoofers can be deployed with a cardioid configuration (DSP dependent), which can effectively reduce stage volume, while increasing low-end output directed at the audience. The rear panel offers three Neutrik speakON NL4MP connectors, which are configured with two input/parallel connectors for multiple subwoofers plus one output connector for flexible setup to full-range CZR loudspeakers or cardioid mode setting. The Yamaha CXS15XLF is equipped with both a 35mm pole socket and an M20 threaded socket to support a full-range cabinet.

Yamaha CXS15XLF 800W 15-Inch Passive Subwoofer Black ƒ?? Key Features:

  • Passive reflex subwoofer
  • Woofer: 15" with 4" voice coil
  • Ideal for low-frequency extension to all full-range loudspeakers
  • Maximum SPL: 130 dB
  • Frequency range (-10 dB): 33 to 150 Hz
  • High-power 800W (PGM) input
  • Cardioid mode capable with processors or DSP onboard power amps
  • 3 x speakON NL4MP (2 x parallel, 1 x output)
  • Lightweight yet very durable plywood cabinet with premium grade Polyurea coating
  • Dual-pole socket
  • Optional speaker cover (SPCVR-DXS15X) and wheel kit (SPW-1)
