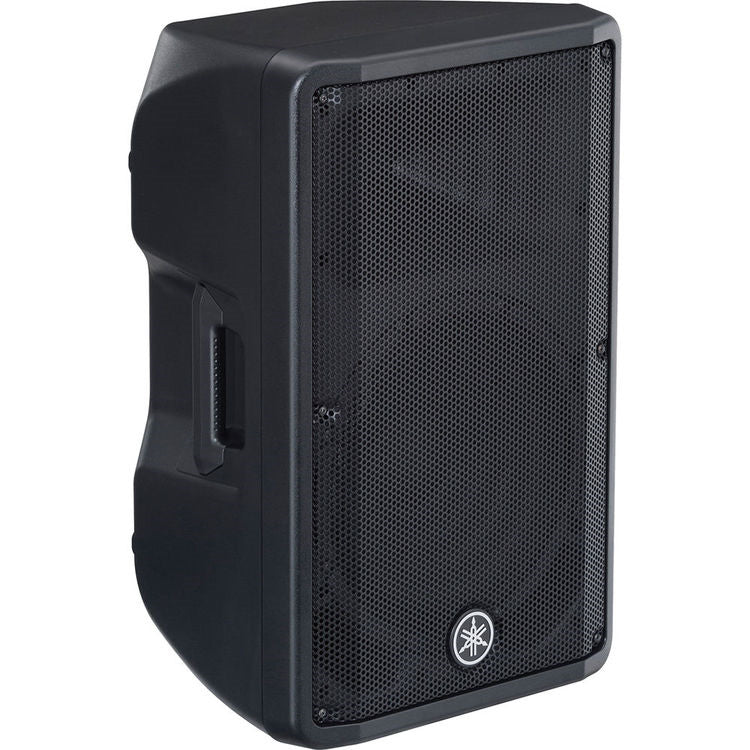

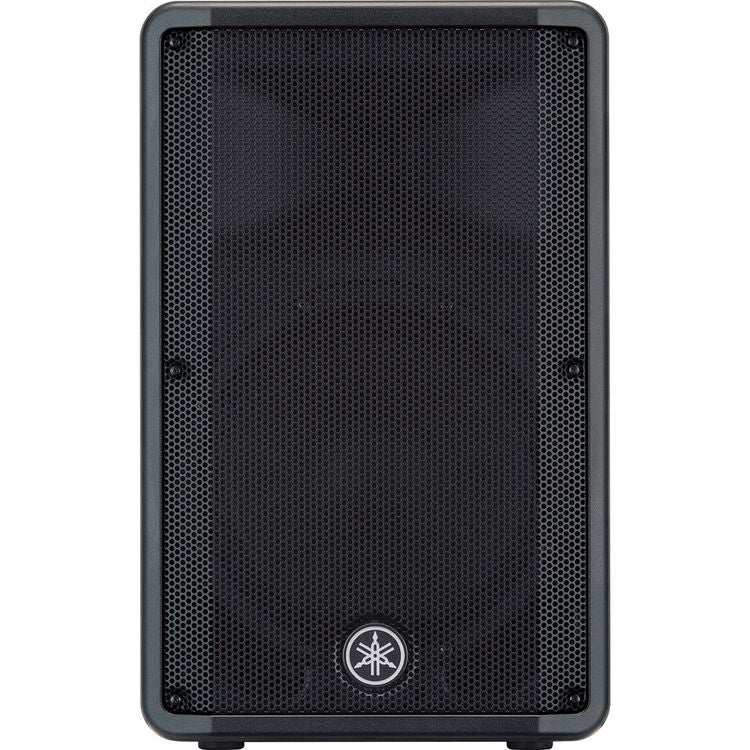

Yamaha DBR12 12" 2-Way 1000-Watt Powered Speaker

Yamaha DBR12 12" 2-Way 1000-Watt Powered Speaker

SKU#: 134320

Sale price $449.99 Regular price
Regular price $449.99
Sale Sold out
Shipping calculated at checkout.
Eligible for free shipping
Discounts for students and teachers Learn More
Request a price quote for school and church
Save instantly with our coupons. Sign Up Now!
View full details

Giving you the flexibility of using it for floor monitoring, front of house, or rigged applications, the Yamaha DBR12 12" 2-Way 1000-Watt Powered Speaker is capable of up to 1000W of dynamic output via its Class D amplifier. The loudspeaker features a 12" woofer and a 1.4" high-frequency driver and provides a maximum output of 131 dB. An on-board 2-channel mixers allows you to connect microphone or line level sources via 1/4", XLR, and RCA connectors. Thanks to its ergonomic handle and lightweight design the DBR12 is portable and can be easily transported.

High-Efficiency Class D Amplifier

The DBR12's lightweight, high performance Class-D amplifier is capable of producing up to 1000 W of power, achieving an SPL of 131 dB, delivered with clarity and dynamic characteristics

Custom Designed Transducer

The woofer delivers defined, powerful bass with minimal distortion, while the 1" precision compression driver produces accurate mid-range and high frequencies

Portable Cabinet

DBR Series speakers feature a compact, lightweight, and durable plastic cabinet which offers the portability of all Yamaha powered speakers. The sleek steel grille bolsters cabinet durability and protects the internal components while an ergonomic handles provide transportation and system setup

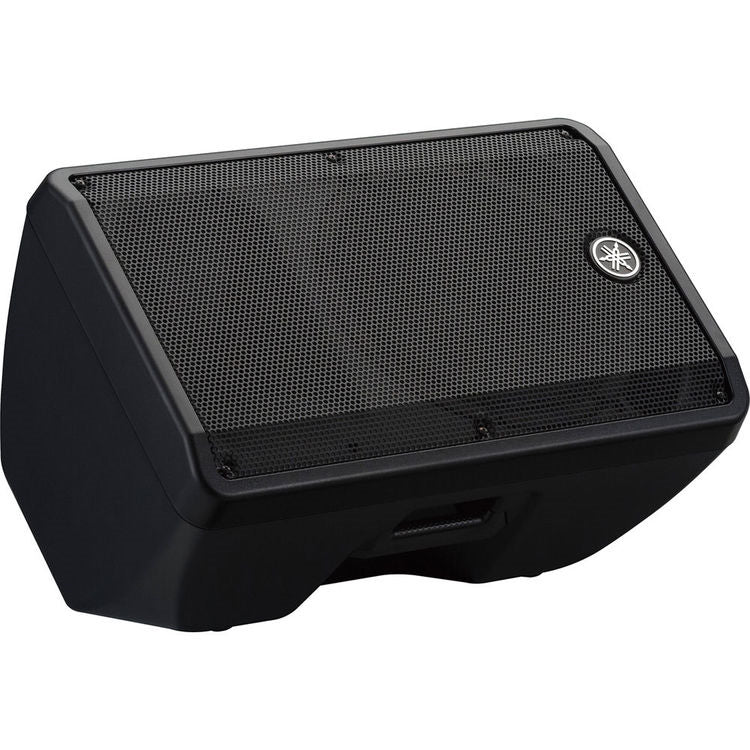

Enclosure Design for Floor Monitoring

DBR Series speakers feature an optimized 50?ø wedge angle for floor monitoring

On-Board 2-Channel Mixer

DBR Series speakers have two input channels. Channel 1 has a combo jack which accepts both XLR and TRS Phone allowing for either Mic or Line level input signals. Channel 2 offers two input options; a combo jack that accepts XLR or TRS Phone, and a stereo RCA pin jack for input from CD players or other stereo line-level sources. The onboard mixer allows you to select either Channel 1 + 2 MIX to mix the signal of Channel 1 and Channel 2, or Channel 1 THRU to pass the signal from Channel 1 only

Rigging Points for Installation Applications

DBR loudspeakers come equipped with M8 rigging threads, allowing for rigged applications with optional speaker brackets or standardized eye-bolts

Yamaha DBR12 12" 2-Way 1000-Watt Powered Speaker - Specifications:

  • Speaker Type: 2-way, bi-amp powered speaker, bass-reflex type
  • Frequency Range: 52 Hz to 20 kHz (-10 dB)
  • Nominal Coverage Angle: H: 90?ø; V: 60?ø
  • Components - LF: 12" cone; 2" Voice Coil; Ferrite magnet
  • Components - HF: 1.4" diaphragm throat compression driver; Ferrite magnet
  • Crossover: 2.1 kHz: FIR-X tuning (linear phase FIR filter)
  • Output Power: Dynamic: 1000 W (LF: 800 W, HF: 200 W); Continuous: 465 W (LF: 400 W, HF: 65 W)
  • Maximum Output Level: 131 dB SPL
  • I/O Connectors: INPUT1: 1x combination XLR/TRS; INPUT2: 1x combination XLR/TRS, 2x unbalanced RCA; OUTPUT: 1x XLR3-32 (CH 1 Parallel Through or CH 1 + CH 2 Mix)
  • Processors: D-Contour; FOH/Main; Monitor; Off
  • Heat Dissipation: Fan cooling, 4 speeds
  • Power Requirements: 100-120 V
  • Power Consumption: 74 W (1/8 Power Consumption); 18 W (Idle)
  • Cabinet Material: Plastic
  • Handle: 2x Side
  • Mounting Hardware: 2x bottom mounted, 1x rear mounted for M8 x 15 mm eyebolts
  • Pole Socket: 1x 35 mm, bottom
  • Dimensions (W x H x D): 14.8 x 23.7 x 13.7" (376 x 601 x 348 mm)
  • Weight: 34.8 lb (15.8 kg)
