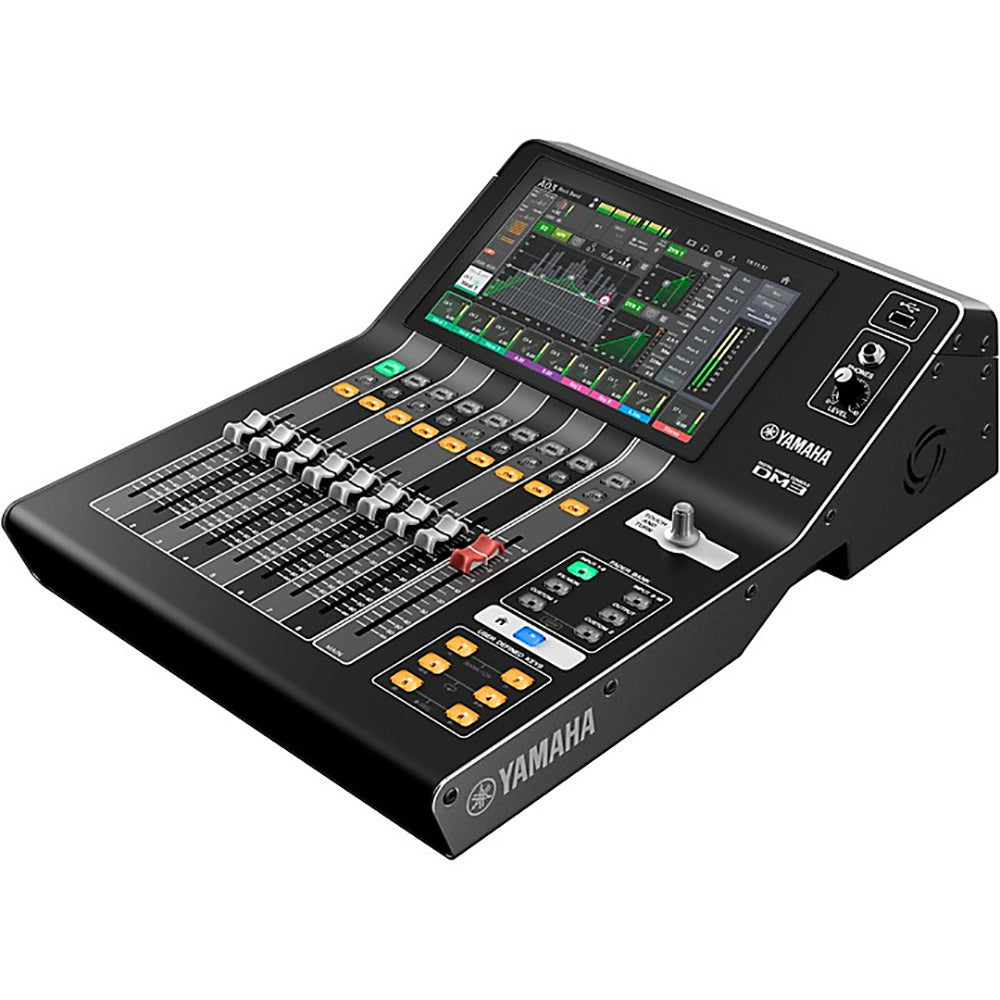

Yamaha DM3-D Professional 22 Ch Ultracompact Digital Mixer with Dante

The Yamaha DM3-D is an ultracompact 22-channel digital mixer with Dante connectivity and up to 96kHz sample rates. When not on stage, DM3-D can be used as a DAW controller in the studio. Built to make mixing easy, the DM3-D lets you focus on the music, utilizing an intuitive 9” touchscreen and a single Touch & Turn knob for managing most of the operations. The DM3-D continues the Yamaha legacy of sonic purity, offering you the perfect canvas for mixing, recording and streaming.

Yamaha DM3-D Professional 22 Ch Ultracompact Digital Mixer with Dante Features:

• Renowned Yamaha sound quality with 96kHz sample rate
• 22 channels (16 mono, one stereo, two stereo FX returns)
• Six mono or three stereo mixes, two matrices, one stereo bus
• 16 professional Yamaha preamps (12 XLR plus four combo jacks)
• Eight analog outputs (XLR)
• 16x16 Dante interface
• 18x18 USB audio interface for playback and recording and 2x2 USB recorder
• Best-in-class 9" touchscreen
• DAW Remote Mode including transport control
• Custom control via OSC, USB-MIDI and Provisionaire
• Bundled with Cubase Al
• DM3 Editor—a standalone application for Windows or Mac that works for both online operation and offline configuration and editing
• DM3 StageMix—an iPad application that enables remote control of the DM3 Series through a simple and intuitive graphical interface
• With StageMix, the engineer can control the mix parameters from the performer's position on the stage
• MonitorMix—application for iOS and Android devices puts control of each performer’s monitor mix into the palm of their hand
• ProVisionaire Control/Touch—allows you to create control panels tailored to your installation and workflow, so you can remotely control and monitor your equipment
• ProVisionaire Control for Windows and ProVisionaire Touch for iPads offer control of a wide range of devices, including the DM3 Series

Yamaha DM3-D Professional 22 Ch Ultracompact Digital Mixer with Dante Specifications:

Mixing Capacity

• Input channels: 16 mono, 1 stereo, 2 FX return
• Buses: 1 stereo, 6 mix, 2 FX, 2 matrix (input to matrix supported)

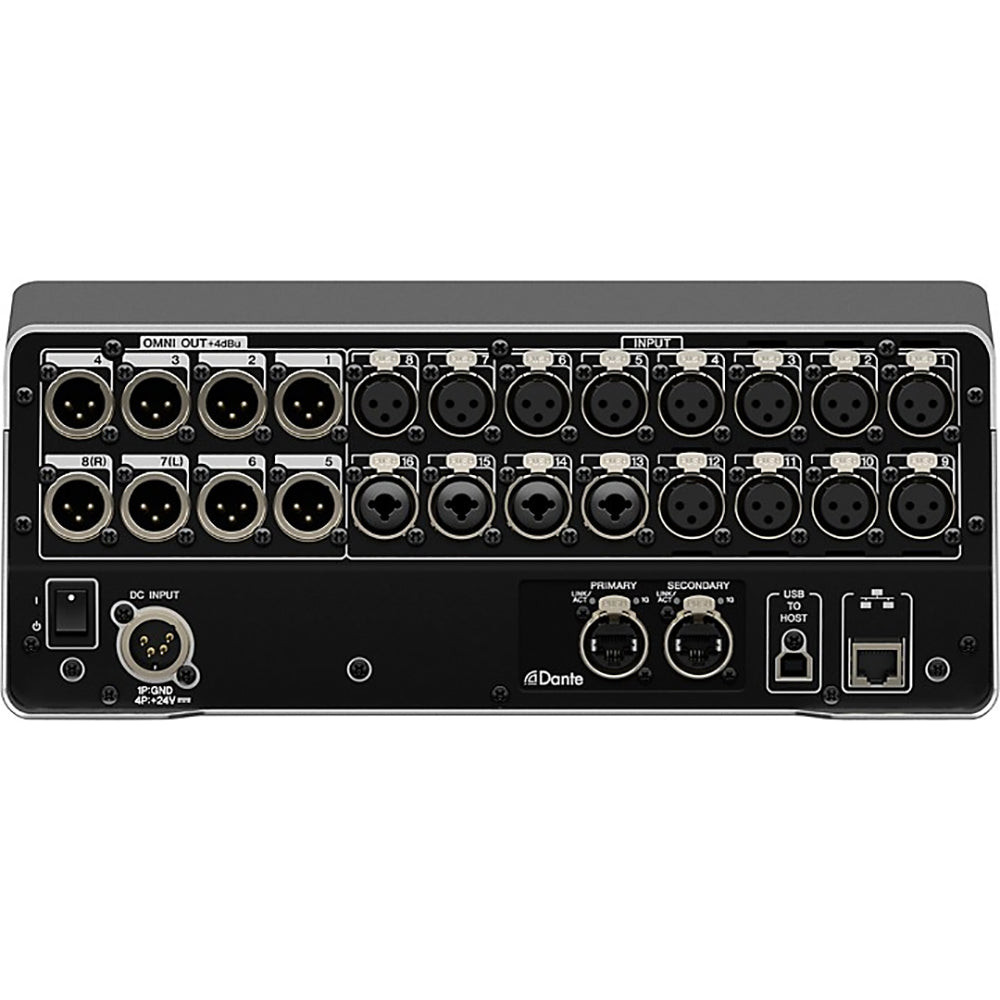

Local Connectors

• Analog in: 16 mic/line (12 XLR + 4 XLR/TRS phones combo)
• Analog out: 8 (XLR)
• Dante I/O: 2 (etherCON: Primary/secondary, 16 in/out)
• Ethernet: 1 (RJ-45)
• USB to host: 1 (USB Type-B)
• USB to device: 1 (USB Type-A)
• Phones: 1 (TRS phones)
• DC in: 1 (XLR 4-pin)

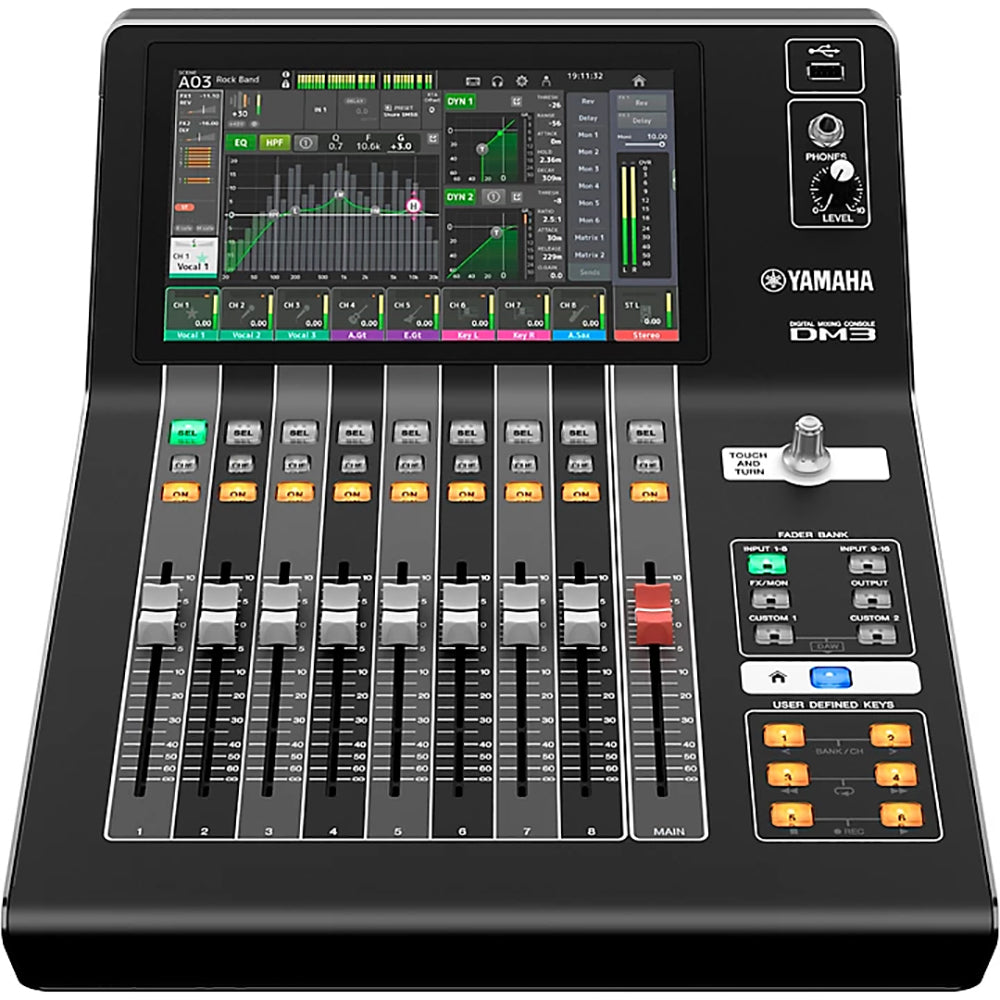

User Interface

• 9" multi-touch screen
• 9 100 mm motorized fader (8 channels + 1 master)
• 1 rotary encoder (Touch and Turn)

Recording and Playback

• PC (via USB to host) (USB 2.0): Recording 18 track, playback 18 track
• USB storage device: Recording 2 track, playback 2 track
• Sampling rate: 96kHz/48kHz

Power

• Requirements: DC24V, 2.5A, PA-L500 (100V–240V, 50Hz/60Hz)
• Consumption: 43W

Software

• DM3 Editor
• DM3 StageMix
• MonitorMix
• ProVisionaire Control/Touch
